The Android kernel mitigations obstacle race

In this post I’ll exploit CVE-2022-22057, a use-after-free in the Qualcomm gpu kernel driver, to gain root and disable SELinux from the untrusted app sandbox on a Samsung Z flip 3. I’ll look at various mitigations that are implemented on modern Android devices and how they affect the exploit.

|
| 59 minutes

In this post, I’ll exploit a use-after-free (UAF) bug, CVE-2022-22057 in the Qualcomm GPU driver, which affected the kernel branch 5.4 or above, and is mostly used by flagship models running the Snapdragon 888 chipset or above (for example, the Snapdragon version of S21—used in the U.S. and a number of Asian countries, such as China and Korea— and all versions of the Galaxy Z Flip3, and many others). The device tested here is the Samsung Galaxy Z Flip3 and I was able to use this bug alone to gain arbitrary kernel memory read and write, and from there, disable SELinux and run arbitrary commands as root. The bug itself was publicly disclosed in the Qualcomm security bulletin in May 2022 and the fix was applied to devices in the May 2022 Android security patch.

Why Android GPU drivers

While the bug itself is a fairly standard use-after-free bug that involves a tight race condition in the GPU driver, and this post focuses mostly on bypassing the many mitigations that are in place on the device rather on the GPU, it is, nevertheless, worth giving some motivations as to why the Android GPU makes an attractive target for attackers.

As was mentioned in the article “The More You Know, The More You Know You Don’t Know” by Maddie Stone, out of seven Android 0-days that were detected as exploited in the wild in 2021, five of them targeted GPU drivers. As of the date of writing, another bug that was exploited in the wild, CVE-2021-39793 disclosed in March 2022 also targeted the GPU driver.

Apart from the fact that most Android devices use either the Qualcomm Adreno or the ARM Mali GPU, making it possible to obtain universal coverage with relatively few bugs (this was mentioned in Maddie Stone’s article), the GPU drivers are also reachable from the untrusted app sandbox in all Android devices, further reducing the number of bugs that are required in a full chain. Another reason GPU drivers are attractive is that most GPU drivers also handle rather complex memory sharing logic between the GPU device and the CPU. These often involve fairly elaborate memory management code that is prone to bugs that can be abused to achieve arbitrary read and write of physical memory or to bypass memory protection. As these bugs enable an attacker to abuse the functionality of the GPU memory management code, many of them are also undetectable as memory corruptions and immune to existing mitigations, which mostly aim at preventing control flow hijacking. Some examples are the work of Guang Gong and Ben Hawkes, who exploited logic errors in the handling of GPU opcode to gain arbitrary memory read and write.

The vulnerability

The vulnerability was introduced in the 5.4 branch of the Qualcomm msm 5.4 kernel when the new kgsl timeline feature, together with some new ioctl associated with it, was introduced. The msm 5.4 kernel carried out some rather major refactoring of the kernel graphics support layer (kgsl) driver (under drivers/gpu/msm, which is Qualcomm’s GPU driver) and introduced some new features. Both these new features and refactoring resulted in a number of regressions and new security issues, most of which were found and fixed internally and then disclosed publicly as security issues in the bulletins (kudos to Qualcomm for not silently patching security issues), including some that look fairly exploitable.

The kgsl_timeline object can be created and destroyed via the ioctl IOCTL_KGSL_TIMELINE_CREATE and IOCTL_KGSL_TIMELINE_DESTROY. The kgsl_timeline object stores a list of dma_fence objects in the field fences. The ioctl IOCTL_KGSL_TIMELINE_FENCE_GET and IOCTL_KGSL_TIMELINE_WAIT can be used to add dma_fence objects to this list. The dma_fence objects added are refcounted objects and their refcounts are decreased using the standard dma_fence_put method.

What is interesting about timeline->fences is that it does not actually hold an extra refcount to the fences. Instead, to avoid a dma_fence in timeline->fences from being freed, a customized release function, timeline_fence_release is used to remove the dma_fence from timeline->fences before it gets freed.

When the refcount of a dma_fence stored in kgsl_timeline::fences is decreased to zero, the method timeline_fence_release will be called to remove the dma_fence from kgsl_timeline::fences so that it can no longer be referenced from the kgsl_timeline, and then dma_fence_free is called to free the object itself:

static void timeline_fence_release(struct dma_fence *fence)
{
    ...
    spin_lock_irqsave(&timeline->fence_lock, flags);

    /* If the fence is still on the active list, remove it */
    list_for_each_entry_safe(cur, temp, &timeline->fences, node) {
        if (f != cur)
            continue;

        list_del_init(&f->node);    //<----- 1. Remove fence
        break;
    }
    spin_unlock_irqrestore(&timeline->fence_lock, flags);
    ...
    kgsl_timeline_put(f->timeline);
    dma_fence_free(fence);     //<-------    2.  frees the fence
}

Although the removal of fence from timeline->fences is correctly protected by the timeline->fence_lock, IOCTL_KGSL_TIMELINE_DESTROY makes it possible to acquire a reference to a dma_fence in fences after its refcount has reached zero but before it gets removed from fences in timeline_fence_release:

long kgsl_ioctl_timeline_destroy(struct kgsl_device_private *dev_priv,
        unsigned int cmd, void *data)
{
    ...
    spin_lock(&timeline->fence_lock);  //<------------- a.
    list_for_each_entry_safe(fence, tmp, &timeline->fences, node)
        dma_fence_get(&fence->base);
    list_replace_init(&timeline->fences, &temp);
    spin_unlock(&timeline->fence_lock);


    spin_lock_irq(&timeline->lock);
    list_for_each_entry_safe(fence, tmp, &temp, node) { //<----- b.
        dma_fence_set_error(&fence->base, -ENOENT);
        dma_fence_signal_locked(&fence->base);
        dma_fence_put(&fence->base);
    }
    spin_unlock_irq(&timeline->lock);
    ...
}

In kgsl_ioctl_timeline_destroy, when destroying the timeline, the fences in timeline->fences are first copied to another list, temp and then removed from timeline->fences (point a.). As timeline->fences does not hold an extra reference of the fence, refcount is increased to stop them from being free’d in temp. Again, the manipulation of timeline->fences is protected by timeline->fence_lock here. However, if the refcount of a fence is already zero when a in the above is reached, but timeline_fence_release has not yet been able to remove it from timeline->fences, (it has not reached point 1. In the snippet included in timeline_fence_release), then the dma_fence would be moved to temp, and although its reference is increased, it is already too late, because timeline_fence_release will free the dma_fence when it reaches point 2., regardless of the refcount. So if the events happens in the following order, then a use-after-free could be triggered at point b.:

In the above, the red blocks indicate code that are holding the same lock, meaning that the execution of these blocks are mutually exclusive. While the order of events may look rather contrived (as it always is when you try to illustrate a race condition), the actual timing is not too hard to achieve. As the code in timeline_fence_release that removes a dma_fence from timeline->fences cannot run while the code in kgsl_ioctl_timeline_destroy is accessing timeline->fence (both are holding timeline->fence_lock), by adding a large number of dma_fence to timeline->fence, I can increase the time required to run the red code block in kgsl_ioctl_timeline_destroy. If I decrease the refcount of the last dma_fence in timeline->fences in thread two to zero while the red code block in thread one is running, I can trigger timeline_fence_release before dma_fence_get increases the refcount of this dma_fence in thread one. As the red code block in thread two also needs to acquire the timeline->fence_lock, it can not remove the dma_fence from timeline->fences until after the red code block in thread one finished. By that time, all the dma_fence in timeline->fences have been moved to the list temp. This also means that by the time the red code block in thread two runs, timeline->fences is an empty list and the loop finishes quickly and proceeds to dma_fence_free. In short, as long as I add a large enough number of dma_fences to timeline->fences, I can create a large race window when kgsl_ioctl_timeline_destroy is moving the dma_fences in timeline->fences to temp. As long as I reduce the last refcount of the last dma_fence in timeline->fences within this window, I’m able to trigger the UAF bug.

Mitigations

While triggering the bug is not too difficult, exploiting it, on the other hand, is a completely different matter. The device that I used for testing this bug and for developing the exploit is a Samsung Galaxy Z Flip3. The latest Samsung devices running kernel version 5.x probably have the most mitigations in place, even more so than the Google Pixels. While older devices running kernel 4.x often have mitigations such as the kCFI (Kernel Control Flow Integrity) and variable initialization switched off, all those features are switched on in the 5.x kernel branch, and on top of that, there is also the Samsung RKP (Realtime Kernel Protection) that protects various memory area, such as kernel code and process credentials, making it difficult to execute arbitrary code even when arbitrary memory read and write is achieved. In this section, I’ll briefly explain how those mitigations affect the exploit.

kCFI

The kCFI is arguably the mitigation that takes the most effort to bypass, especially when used in conjunction with the Samsung hypervisor which protects many important memory areas in the kernel. The kCFI prevents hijacking of control flow by limiting the locations where a dynamic callsite can jump to using function signatures. For example, in the current vulnerability, after the dma_fence is freed, the function dma_fence_signal_locked is called:

long kgsl_ioctl_timeline_destroy(struct kgsl_device_private *dev_priv,
        unsigned int cmd, void *data)
{
    ...
    spin_lock_irq(&timeline->lock);
    list_for_each_entry_safe(fence, tmp, &temp, node) {
        dma_fence_set_error(&fence->base, -ENOENT);
        dma_fence_signal_locked(&fence->base);       //<---- free'd fence is used
        dma_fence_put(&fence->base);
    }
    spin_unlock_irq(&timeline->lock);
    ...
}

The function dma_fence_signal_locked then invokes a function cur->func that is an element inside the fence->cb_list list.

int dma_fence_signal_locked(struct dma_fence *fence)
{
    ...
    list_for_each_entry_safe(cur, tmp, &cb_list, node) {
        INIT_LIST_HEAD(&cur->node);
        cur->func(fence, cur);
    }
    ...
}

Without kCFI, the now free’d fence object can be replaced with a fake object, meaning that cb_list and its elements, hence func, can all be faked, giving a ready to use primitive to call an arbitrary function with both its first and second arguments pointing to controlled data (fence and cur can both be faked). The exploit would have been very easy once KASLR was defeated (for example, with a separate bug to leak kernel addresses like in this exploit). However, because of kCFI, func can now only be replaced by functions that have the type dma_fence_func_t, which greatly limits the use of this primitive.

While in the past, I’ve written about how easy it is to bypass Samsung’s control flow integrity checks (JOPP, jump-oriented programming prevention), there is no easy way round kCFI. One common way to bypass kCFI is to use a double free to hijack the freelist and then apply the Kernel Space Mirroring Attack (KSMA). This was used a number of times, for example, in Three dark clouds over the Android kernel of Jun Yao, Typhoon Mangkhut: One-click remote universal root formed with two vulnerabilities of Hongli Han, Rong Jian, Xiaodong Wang and Peng Zhou.

While the current bug also gives me a double free primitive when dma_fence_put is called after fence is freed:

long kgsl_ioctl_timeline_destroy(struct kgsl_device_private *dev_priv,
        unsigned int cmd, void *data)
{
    ...
    spin_lock_irq(&timeline->lock);
    list_for_each_entry_safe(fence, tmp, &temp, node) {
        dma_fence_set_error(&fence->base, -ENOENT);
        dma_fence_signal_locked(&fence->base);
        dma_fence_put(&fence->base);       //<----- free'd fence can be freed again
    }
    spin_unlock_irq(&timeline->lock);
    ...
}

The above decreases the refcount of the fake fence object, which I can control to make it one, so that the fake fence gets freed again. This, however, does not allow me to apply KSMA as it would require overwriting of the swapper_pg_dir data structure, which is protected by the Samsung hypervisor.

Variable initialization

From Android 11 onwards, the kernel can enable automatic variable initialization by enabling various kernel build flags. The following, for example, is taken from the build configuration of the Z Flip3:

# Memory initialization
#
CONFIG_CC_HAS_AUTO_VAR_INIT_PATTERN=y
CONFIG_CC_HAS_AUTO_VAR_INIT_ZERO=y
# CONFIG_INIT_STACK_NONE is not set
# CONFIG_INIT_STACK_ALL_PATTERN is not set
CONFIG_INIT_STACK_ALL_ZERO=y
CONFIG_INIT_ON_ALLOC_DEFAULT_ON=y
# CONFIG_INIT_ON_FREE_DEFAULT_ON is not set
# end of Memory initialization

While the feature is available since Android 11, many devices running kernel branch 4.x do not have these enabled. On the other hand, devices running kernel 5.x seem to have these enabled. Apart from the obvious uninitialized variables vulnerabilities that this feature prevents, it also makes it harder for object replacement. In particular, it is no longer possible to perform partial object replacement, in which only the first bytes of the object are replaced, while the rest of the object remains valid. So for example, the type of heap spray technique under the section, “Spraying the heap” in “Mitigations are attack surface, too” by Jann Horn is no longer possible with automatic variable initialization. In the context of the current bug, this mitigation limits the heap spray options that I have, and I’ll explain more as we go through the exploit.

kfree_rcu

This isn’t a security mitigation at all, but it is nevertheless interesting to mention it here, because it has a similar effect to some UAF mitigations that had been proposed. The UAF fence object in this bug is freed when dma_fence_free is called, which, instead of the normal kfree, uses kfree_rcu. In short, kfree_rcu does not free an object immediately, but rather schedules it to be freed when certain criteria are met. This acts somewhat like a delayed free that introduces an uncertainty in the time when the object is freed. Interestingly, this effect is quite similar to the UAF mitigation that is used in the Scudo allocator (default allocator of Android user space processes), which quarantines the free’d objects before actually freeing them to introduce uncertainty. A similar proposal has been suggested for the linux kernel (but was rejected later). Apart from introducing uncertainty in the object replacement, a delayed free may also cause problems for UAF with tight race windows. So, on the face of it, the use of kfree_rcu would be rather problematic for exploiting the current bug. However, with many primitives to manipulate the size of a race window, such as the ones detailed in Racing against the clock—hitting a tiny kernel race window and an older technique in Exploiting race conditions on [ancient] Linux, (both by Jann Horn, the older technique is used for exploiting the current bug) any tight race window can be made large enough to allow for the delay caused by kfree_rcu, and the subsequent object replacement. As for the uncertainty, that does not seem to cause a very big problem either. In exploiting this bug, I actually had to perform object replacement with kfree_rcu twice, the second time without even knowing on which CPU core the free is going to happen, and yet even with this and all the other moving parts, a rather unoptimized exploit still runs at a reasonable reliability (~70%) on the device tested. While I believe that the second object replacement with kfree_rcu (where the CPU that frees the object is uncertain) is probably the main source of unreliability, I’d attribute that reliability loss more to the lack of CPU knowledge rather than to the delayed free. In my opinion, a delayed free may not be a very effective UAF mitigation when there are primitives that allow the scheduler to be manipulated.

Samsung RKP (Realtime Kernel Protection)

The Samsung RKP protects various parts of the memory from being written to. This prevents processes from overwriting their own credentials to become root, as well as protecting SELinux settings from being overwritten. It also prevents kernel code regions and other important objects, such as kernel page tables, from being overwritten. In practice, though, once arbitrary kernel memory read and write (subject to RKP restrictions) is achieved, there are ways to bypass these restrictions. For example, SELinux rules can be modified by overwriting the avc cache (see, for example, this exploit by Valentina Palmiotti), while gaining root can be done by hijacking other processes that run as root. In the context of the current bug, the Samsung RKP mostly works with kCFI to prevent arbitrary functions from being called.

In this post, I’ll exploit the bug with all these mitigations enabled.

Exploiting the bug

I’ll now start going through the exploit of the bug. It is a fairly typical use-after-free bug that involves a race condition and perhaps reasonably strong primitives with both the possibility of arbitrary function call and double free, which is not that uncommon. Apart from that, this is a typical bug, just like many other UAF found in the kernel. So, it seems fitting to use this bug to gauge how these mitigations affect the development of a standard UAF exploit.

Adding dma_fence to timeline->fences

In the section, “The vulnerability,” I explained that the bug relies on having dma_fence objects added to the fences list in a kgsl_timeline object, which then have their refcount decreased to zero while the kgsl_timeline is being destroyed. There are two options to add dma_fence objects to a kgsl_timeline, the first is to use IOCTL_KGSL_TIMELINE_FENCE_GET:

long kgsl_ioctl_timeline_fence_get(struct kgsl_device_private *dev_priv,
        unsigned int cmd, void *data)
{
    ...
    timeline = kgsl_timeline_by_id(device, param->timeline);
    ...
    fence = kgsl_timeline_fence_alloc(timeline, param->seqno); //<----- dma_fence created and added to timeline
    ...
    sync_file = sync_file_create(fence);
    if (sync_file) {
        fd_install(fd, sync_file->file);
        param->handle = fd;
    }
    ...
}

This will create a dma_fence with kgsl_timeline_fence_alloc and add it to the timeline. The caller then gets a file descriptor for a sync_file that corresponds to the dma_fence. When the sync_file is closed, the refcount of dma_fence is decreased to zero.

The second option is to use IOCTL_KGSL_TIMELINE_WAIT:

long kgsl_ioctl_timeline_wait(struct kgsl_device_private *dev_priv,
        unsigned int cmd, void *data)
{
    ...
    fence = kgsl_timelines_to_fence_array(device, param->timelines,
        param->count, param->timelines_size,
        (param->flags == KGSL_TIMELINE_WAIT_ANY));     //<------ dma_fence created and added to timeline
    ...
    if (!timeout)
        ret = dma_fence_is_signaled(fence) ? 0 : -EBUSY;
    else {
        ret = dma_fence_wait_timeout(fence, true, timeout);   //<----- 1.
        ...
    }

    dma_fence_put(fence);
    ...
}

This will create dma_fence objects using kgsl_timelines_to_fence_array and add them to the timeline. If a timeout value is specified, then the call will enter dma_fence_wait_timeout (path labeled 1), which will wait until either the timeout expires or when the thread receives an interrupt. After dma_fence_wait_timeout finishes, dma_fence_put is called to reduce the refcount of the dma_fence to zero. So, by specifying a large timeout, dma_fence_wait_timeout will block until it receives an interrupt, which will then free the dma_fence that was added to the timeline.

While IOCTL_KGSL_TIMELINE_FENCE_GET may seem easier to use and control at first glance, in practice, the overhead incurred by closing the sync_file makes the timing for destruction of the dma_fence less reliable. So, for the exploit, I use IOCTL_KGSL_TIMELINE_FENCE_GET to create and add persistent dma_fence objects to fill the timeline->fences list to enlarge the race window, while the last dma_fence object that is used for the UAF bug is added using IOCTL_KGSL_TIMELINE_WAIT and which gets freed when I send an interrupt signal to the thread that calls IOCTL_KGSL_TIMELINE_WAIT.

Widening the tiny race window

To recap, in order to exploit the vulnerability, I need to remove the refcount of a dma_fence in the fences list of a kgsl_timeline within the first race window labeled in the following code block:

long kgsl_ioctl_timeline_destroy(struct kgsl_device_private *dev_priv,
        unsigned int cmd, void *data)
{
    //BEGIN OF FIRST RACE WINDOW
    spin_lock(&timeline->fence_lock);
    list_for_each_entry_safe(fence, tmp, &timeline->fences, node)
        dma_fence_get(&fence->base);
    list_replace_init(&timeline->fences, &temp);
    spin_unlock(&timeline->fence_lock);
    //END OF FIRST RACE WINDOW
    //BEGIN OF SECOND RACE WINDOW
    spin_lock_irq(&timeline->lock);
    list_for_each_entry_safe(fence, tmp, &temp, node) {
        dma_fence_set_error(&fence->base, -ENOENT);
        dma_fence_signal_locked(&fence->base);
        dma_fence_put(&fence->base);
    }
    spin_unlock_irq(&timeline->lock);
    //END OF SECOND RACE WINDOW
    ...
}

As explained before, the first race window can be enlarged by adding a large number of dma_fence objects to timeline->fences, which makes it easy to trigger the decrease of refcount within this window. However, to exploit the bug, the following code, as well as the object replacement, must be completed before the end of the second race window:

    spin_lock_irqsave(&timeline->fence_lock, flags);
    list_for_each_entry_safe(cur, temp, &timeline->fences, node) {
        if (f != cur)
            continue;
        list_del_init(&f->node);
        break;
    }
    spin_unlock_irqrestore(&timeline->fence_lock, flags);
    trace_kgsl_timeline_fence_release(f->timeline->id, fence->seqno);
    kgsl_timeline_put(f->timeline);
    dma_fence_free(fence);

As explained before, because of the spin_lock, the above cannot start until the first race window ends, but by the time this code is run, timeline->fences has been emptied, so the loop will be quick to run. However, since dma_fence_free uses kfree_rcu, the actual freeing of fence is delayed. This makes it impossible to replace the free’d fence before the second race window finishes, unless we manipulate the scheduler. To do so, I’ll use a technique in “Exploiting race conditions on [ancient] Linux” that I also used in another Android exploit to widen this race window.

I’ll recap the essence of the technique here for readers who are not familiar with it.

To ensure that each task (thread or process) has a fair share of the CPU time, the linux kernel scheduler can interrupt a running task and put it on hold, so that another task can be run. This kind of interruption and stopping of a task is called preemption (where the interrupted task is preempted). A task can also put itself on hold to allow another task to run, such as when it is waiting for some I/O input, or when it calls sched_yield(). In this case, we say that the task is voluntarily preempted. Preemption can happen inside syscalls such as ioctl calls as well, and on Android, tasks can be preempted except in some critical regions (e.g. holding a spinlock). This behavior can be manipulated by using CPU affinity and task priorities.

By default, a task is run with the priority SCHED_NORMAL, but a lower priority SCHED_IDLE can also be set using the sched_setscheduler call (or pthread_setschedparam for threads). Furthermore, it can also be pinned to a CPU with sched_setaffinity, which would only allow it to run on a specific CPU. By pinning two tasks, one with SCHED_NORMAL priority and the other with SCHED_IDLE priority to the same CPU, it is possible to control the timing of the preemption as follows.

  1. First have the SCHED_NORMAL task perform a syscall that would cause it to pause and wait. For example, it can read from a pipe with no data coming in from the other end, then it would wait for more data and voluntarily preempt itself, so that the SCHED_IDLE task can run.
  2. As the SCHED_IDLE task is running, send some data to the pipe that the SCHED_NORMAL task had been waiting on. This will wake up the SCHED_NORMAL task and cause it to preempt the SCHED_IDLE task, and because of the task priority, the SCHED_IDLE task will be preempted and put on hold.
  3. The SCHED_NORMAL task can then run a busy loop to keep the SCHED_IDLE task from waking up.

In our case, the object replacement sequence goes as follows:

  1. Run IOCTL_KGSL_TIMELINE_WAIT on a thread to add dma_fence objects to a kgsl_timeline. Set the timeout to a large value and use sched_setaffinity to pin this task to a CPU, call it SPRAY_CPU. Once the dma_fence object is added, the task will then become idle until it receives an interrupt.
  2. Set up a SCHED_NORMAL task and pin it to another CPU (DESTROY_CPU) that listens to an empty pipe. This will cause this task to become idle initially and allow DESTROY_CPU to run a lower priority task. Once the empty pipe receives some data, this task then will run a busy loop.
  3. Set up a SCHED_IDLE task on DESTROY_CPU which will run IOCTL_KGSL_TIMELINE_DESTROY to destroy the timeline where the dma_fence is added in step one. As the task set up in step two is waiting for a response to an empty pipe, DESTROY_CPU will run this task first.
  4. Send an interrupt to the task running IOCTL_KGSL_TIMELINE_WAIT. The task will then unblock and free the dma_fence while IOCTL_KGSL_TIMELINE_DESTROY is running within the first race window.
  5. Write to the empty pipe that the SCHED_NORMAL task is listening to. This will cause the SCHED_NORMAL task to preempt the SCHED_IDLE task. Once it has successfully preempted the task, DESTROY_CPU will run the busy loop, causing the SCHED_IDLE task to be put on hold.
  6. As the SCHED_IDLE task running IOCTL_KGSL_TIMELINE_DESTROY is put on hold, there is now enough time to overcome the delay introduced by kfree_rcu and allow the dma_fence in step four to be freed and replaced. After that, I can resume IOCTL_KGSL_TIMELINE_DESTROY so that the subsequent operations will be performed on the now free’d and replaced dma_fence object.

One caveat here is that, because preemption cannot happen while a thread is holding a spinlock, so IOCTL_KGSL_TIMELINE_DESTROY can only be preempted during the window between spinlocks (marked by the comment below):

long kgsl_ioctl_timeline_destroy(struct kgsl_device_private *dev_priv,
        unsigned int cmd, void *data)
{
    spin_lock(&timeline->fence_lock);
    list_for_each_entry_safe(fence, tmp, &timeline->fences, node)
      ...
    spin_unlock(&timeline->fence_lock);
    //Preemption window
    spin_lock_irq(&timeline->lock);
    list_for_each_entry_safe(fence, tmp, &temp, node) {
    ...
    }
    spin_unlock_irq(&timeline->lock);
    ...
}

Although the preemption window in the above appears to be very small, in practice, as long as the SCHED_NORMAL task tries to preempt the SCHED_IDLE task running IOCTL_KGSL_TIMELINE_DESTROY while the first spinlock is held, preemption will happen as soon as the spinlock is released, making it much easier to succeed in preempting IOCTL_KGSL_TIMELINE_DESTROY at the right time.

The following figure illustrates what happens in an ideal world, with red blocks indicating regions that hold a spinlock and are therefore not possible to preempt, and dotted lines indicating tasks that are idle.

The following figure illustrates what happens in the real world:

For object replacement, I’ll use sendmsg, which is a standard way to replace free’d objects in the linux kernel with controlled data. As the method is fairly standard, I won’t give the details here, but refer readers to the link above. From now on, I’ll assume that the free’d dma_fence object is replaced by arbitrary data. (There are some restrictions in the first 12 bytes using this method, but that does not affect our exploit.)

Assuming that the free’d dma_fence object can be replaced with arbitrary data, let’s take a look at how this fake object is used. After the dma_fence is replaced, it is then used in kgsl_ioctl_timeline_destroy as follows:

    spin_lock_irq(&timeline->lock);
    list_for_each_entry_safe(fence, tmp, &temp, node) {
        dma_fence_set_error(&fence->base, -ENOENT);
        dma_fence_signal_locked(&fence->base);
        dma_fence_put(&fence->base);
    }
    spin_unlock_irq(&timeline->lock);

Three different functions, dma_fence_set_error, dma_fence_signal_locked and dma_fence_put will be called with the argument fence. The function dma_fence_set_error will write an error code to the fence object, which may be useful with a suitable object replacement, but not for sendmsg object replacements and I’ll not be investigating this possibility here. The function dma_fence_signal_locked does the following:

int dma_fence_signal_locked(struct dma_fence *fence)
{
    ...
    if (unlikely(test_and_set_bit(DMA_FENCE_FLAG_SIGNALED_BIT,   //<-- 1.
                      &fence->flags)))
        return -EINVAL;

    /* Stash the cb_list before replacing it with the timestamp */
    list_replace(&fence->cb_list, &cb_list);                    //<-- 2.
    ...
    list_for_each_entry_safe(cur, tmp, &cb_list, node) {        //<-- 3.
        INIT_LIST_HEAD(&cur->node);
        cur->func(fence, cur);
    }

    return 0;
}

It first checks fence->flags (1. in the above): if the DMA_FENCE_FLAG_SIGNALED_BIT flag is set, then the fence has been signaled, and the function exits early. If the fence has not been signaled, then list_replace is called to remove objects in fence->cb_list and place them in a temporary cb_list (2. in the above). After that, functions stored in cb_list are called (3. above). As explained in the section, “kCFI” because of the CFI mitigation, this will only allow me to call functions of a certain type; besides, at this stage I have no knowledge of function addresses, so I’m most likely just going to crash the kernel if I reach this path. So, at this stage, I have little choice but to set the DMA_FENCE_FLAG_SIGNALED_BITflag in my fake object so that dma_fence_signal_locked exits early.

This leaves me the dma_fence_put function, which decreases the refcount of fence and calls dma_fence_release if the refcount reaches zero:

void dma_fence_release(struct kref *kref)
{
    ...
    if (fence->ops->release)
        fence->ops->release(fence);
    else
        dma_fence_free(fence);
}

If dma_fence_release is called, then eventually it’ll check the fence->ops and call fence->ops->release. This gives me two problems: First, fence->ops needs to point to valid memory, otherwise the dereference will fail, and even if the dereference succeeds, fence->ops->release either needs to be zero, or it has to be the address of a function of an appropriate type.

All these present me with two choices. I can either follow the standard path: try to replace the fence object with another object or try to make use of the limited write primitives that dma_fence_put and dma_fence_set_error offer me, while hoping that I can still control the flags and refcount fields to avoid dma_fence_signal_locked or dma_fence_release crashing the kernel.

Or, I can try something else.

The ultimate fake object store

While exploiting another bug, I came across the Software Input Output Translation Lookaside Buffer (SWIOTLB), which is a memory region that is allocated at a very early stage during boot time. As such, the physical address of the SWIOTLB is very much fixed and depends only on the hardware configuration. Moreover, as this memory is in the “low memory” region (Android devices do not seem to have a “high memory” region) and not in the kernel image, the virtual address is simply the physical address with a fixed offset (readers who are interested in the details can, for example, follow the implementation of the kmap function):

#define __virt_to_phys_nodebug(x) ({                   \
    phys_addr_t __x = (phys_addr_t)(__tag_reset(x));        \
    __is_lm_address(__x) ? __lm_to_phys(__x) : __kimg_to_phys(__x); \
})
#define __is_lm_address(addr)  (!(((u64)addr) & BIT(vabits_actual - 1)))

#define __lm_to_phys(addr) (((addr) + physvirt_offset))

The above definitions are from arch/arm64/include/asm/memory.h, which is the relevant implementation for Android. The variable physvirt_offset used for translating the address is a fixed constant set in arm64_memblock_init:

void __init arm64_memblock_init(void)
{...
    memstart_addr = round_down(memblock_start_of_DRAM(),
                   ARM64_MEMSTART_ALIGN);
    physvirt_offset = PHYS_OFFSET - PAGE_OFFSET;

 ...
}

On top of that, the memory in the SWIOTLB can be accessed via the adsp driver that is reachable from an untrusted app, so this seems to be a good place to store fake objects and redirect fake pointers to. However, in the 5.x version of the kernel, the SWIOTLB is only allocated when the kernel is compiled with the CONFIG_DMA_ZONE32 flag, which is not the case for our device.

There is, however, something better. The fact that the early allocation of SWIOTLB gives it a predictable address prompted me to inspect the boot log to see if there are other regions of memory that are allocated early during the boot, and it turns out that there are indeed other memory regions that are allocated very early during the boot.

<6>[    0.000000] [0:        swapper:    0]  Reserved memory: created CMA memory pool at 0x00000000f2800000, size 212 MiB
<6>[    0.000000] [0:        swapper:    0]  OF: reserved mem: initialized node secure_display_region, compatible id shared-dma-pool
...
<6>[    0.000000] [0:        swapper:    0]  OF: reserved mem: initialized node user_contig_region, compatible id shared-dma-pool
<6>[    0.000000] [0:        swapper:    0]  Reserved memory: created CMA memory pool at 0x00000000f0c00000, size 12 MiB

<6>[    0.578613] [7:      swapper/0:    1]  platform soc:qcom,ion:qcom,ion-heap@22: assigned reserved memory node sdsp_region
...
<6>[    0.578829] [7:      swapper/0:    1]  platform soc:qcom,ion:qcom,ion-heap@26: assigned reserved memory node user_contig_region
...

The Reserved memory regions in the above seem to be the memory pools that are used for allocating ion buffers.

On Android, the ion_allocator is used to allocate memory regions used for DMA (direct memory access) that allows kernel drivers and userspace processes to share the same underlying memory. The ion allocator is accessible by an untrusted app via the /dev/ion file, and the ION_IOC_ALLOC ioctl can be used to allocate an ion buffer. The ioctl returns a new file descriptor to the user, which can then be used in the mmap syscall to map the backing store of the ion buffer to userspace.

One particular reason for using the ion buffers is that the user can request memory that has contiguous physical addresses. This is particularly important as some devices (as in devices on the hardware, not the phone itself) access physical memory directly and having contiguous memory addresses can greatly improve the performance of such memory accesses, while some devices cannot handle non contiguous physical memory.

Similar to SWIOTLB, in order to ensure a region of contiguous physical memory with the requested size is available, the ion driver allocates these memory regions very early in the boot and uses them as memory pools (“carved out regions”), which are then used to allocate ion buffers later on when requested. Not all memory pools in the ion device are contiguous memory (for example, the general purpose “system heap” may not be a physically contiguous region), but the user can specify the heap_id_mask when using ION_IOC_ALLOC to specify the ion heap with specific properties (for example, contiguous physical memory).

The fact that these memory pools are allocated at such an early stage means that their addresses are predictable and depend only on the configuration of the hardware (device tree, available memory, start of memory address, various boot parameters, etc.). This, in particular, means that if I allocate an ion buffer from a rarely used memory pool using ION_IOC_ALLOC, the buffer will most likely be allocated at a predictable address. If I then use mmap to map the buffer to userspace, I’ll be able to access the memory at this predictable address at any time!

After some experimentation, it seems that the user_contig_region is almost never used and I was able to map the entire region to userspace everytime. So in the exploit, I used this memory pool and assumed that I can allocate the entire region to keep it simple. (It would be easy to modify the exploit to accommodate the case where part of the region is not available without compromising reliability.)

Now that I am able to put controlled data at a predictable address, I can resolve the problem I encountered previously in the exploit. Recall that, when dma_fence_release is called on my fake fence object:

void dma_fence_release(struct kref *kref)
{
    ...
    if (fence->ops->release)
        fence->ops->release(fence);
    else
        dma_fence_free(fence);
}

I had a problem where I needed fence->ops to point to a valid address that contains all zeros, so that fence->ops->release will not be called (as I do not have a valid function address that matches the signature of fence->ops->release at this stage and taking this path would crash the kernel)

With the ion buffer at a predictable address, I can simply fill it with zero and have fence->ops point there. This will ensure the path dma_fence_free is taken, which will then free my fake object, giving me a double free primitive while preventing a kernel crash. Before proceeding to exploit this double free primitive, there is, however, another issue that needs resolving first.

Escaping an infinite loop

Recall that, in the kgsl_ioctl_timeline_destroy function, after the fence object is destroyed and replaced, the following loop is executed:

    spin_lock_irq(&timeline->lock);
    list_for_each_entry_safe(fence, tmp, &temp, node) {
        dma_fence_set_error(&fence->base, -ENOENT);
        dma_fence_signal_locked(&fence->base);
        dma_fence_put(&fence->base);
    }
    spin_unlock_irq(&timeline->lock);

The list_for_each_entry_safe will first take the next pointer from the list_head temp to find the first fence entry in the list, and then iterate by following the next pointer in fence->node until the next entry points back to temp again. If the next entry does not point back to temp, then the loop will just carry on following the next pointer indefinitely. This is a place where variable initialization makes life more difficult. Look at the layout of kgsl_timeline_fence, which embeds a dma_fence object that is added to the kgsl_timeline:

struct kgsl_timeline_fence {
    struct dma_fence base;
    struct kgsl_timeline *timeline;
    struct list_head node;
};

I can see that the node field is the last field in kgsl_timeline_fence, while to construct the exploit, I only need to replace base with controlled data. The above problem would have been solved easily with partial object replacement. Without automatic variable initialization, if I only replace the free’d kgsl_timeline_fence with an object that is of the size of a dma_fence, then the fields timeline and node would remain intact and contain valid data. This would both cause the next pointer in node to be valid and allow the loop in kgsl_ioctl_timeline_destroy to exit normally. However, with automatic variable initialization, even if I replace the free’d kgsl_timeline_fence object with a smaller object, the entire memory chunk would be set to zero first, erasing both kgsl_timeline and node, meaning that I now have to fake the node field so that:

  1. The next pointer points to a valid address to avoid an immediate crash, in fact, more than that, it needs to point to an object that is another fake kgsl_timeline_fence that can be operated by the functions in the loop (dma_fence_set_error, dma_fence_signal_locked and dma_fence_put) without crashing. That means more fake objects need to be crafted.
  2. One of the next pointers in these fake kgsl_timeline_fence objects points back to the temp list to exit the loop, which is a stack allocated variable.

The first requirement is not too hard, as I can now use the ion buffer to create these fake kgsl_timeline_fence objects. The second requirement, however, is much harder.

On the face of it, this obstacle may seem more like an aesthetic issue rather than a real problem. After all, I can create the fake objects so that the list becomes circular within the fake kgsl_timeline_fence objects:

This would cause an infinite loop and hold up a CPU. While it is ugly, the fake objects should take care of the dereferencing issues and avoid crashes, so it may not be a fatal issue after all. Unfortunately, as the loop runs inside a spinlock, after running for a short while, it seems that the watchdog will flag it as a CPU hogging issue and trigger a kernel panic. So, I do need to find a way to exit the loop, and exit it quickly.

Let’s take a step back and take a look at the function dma_fence_signal_locked:

int dma_fence_signal_locked(struct dma_fence *fence)
{
    ...
    struct list_head cb_list;
    ...
    /* Stash the cb_list before replacing it with the timestamp */
    list_replace(&fence->cb_list, &cb_list);             //<-- 1.
    ...
    list_for_each_entry_safe(cur, tmp, &cb_list, node) { //<-- 2.
        INIT_LIST_HEAD(&cur->node);
        cur->func(fence, cur);
    }

    return 0;
}

This function will be run for each of the fake dma_fence in the list temp (the original free’d and replaced dma_fence, plus the ones that it links to in the ion buffer). As mentioned before, if the code at 2. in the above is run, then the kernel will probably crash because I cannot provide a valid func, so I still would like to avoid running that path.

In order to be able to run this code but not the loop code in 2. above, I need to initialize fence.cb_list to be an empty list, so that its next and prev both point to itself. This is not possible with the initial fake dma_fence that was free’d by the vulnerability, because the address of fence and hence fence.cb_list is unknown, so I had to avoid the list_replace code altogether for this first fake object. However, because the subsequent fake dma_fence objects that are linked to it are in an ion buffer with a known address, I can now create an empty cb_list for these objects, setting both the next and prev pointers to the addresses of the fence.cb_list field. The function list_replace will then do the following:

static inline void list_replace(struct list_head *old,
                struct list_head *new)
{
    //old->next = &(fence->cb_list)
    new->next = old->next;
    //new->next = &(fence->cb_list) => fence->cb_list.prev = &cb_list
    new->next->prev = new;
    //new->prev = fence->cb_list.prev => &cb_list
    new->prev = old->prev;
    //&cb_list->next = &cb_list
    new->prev->next = new;
}

As we can see, after list_replace, the address of the stack variable cb_list has been written to fence->cb_list.prev, which is somewhere in the ion buffer. As the ion buffer is mapped to user space, I can simply read this address by polling the ion buffer. As dma_fence_signal_locked is run inside kgsl_ioctl_timeline_destroy after the stack variable temp is allocated:

long kgsl_ioctl_timeline_destroy(struct kgsl_device_private *dev_priv,
        unsigned int cmd, void *data)
{
    ...
    struct list_head temp;
    ...


    spin_lock_irq(&timeline->lock);
    list_for_each_entry_safe(fence, tmp, &temp, node) {
        dma_fence_set_error(&fence->base, -ENOENT);
        //cb_list, is a stack variable allocated inside `dma_fence_signal_locked`
        dma_fence_signal_locked(&fence->base);
        dma_fence_put(&fence->base);
    }
    spin_unlock_irq(&timeline->lock);
    ...
}

Having the address of cb_list allows me to compute the address of temp, (which will be at a fixed offset from the address of cb_list), so by polling for the address of cb_list and then using this to compute the address of temp and write it back into the next pointer of one of the fake kgsl_timeline_fence objects in the ion buffer, I can exit the loop before the watch dog bites.

Hijacking the freelist

Now that I am able to avoid kernel crashes, I can continue to exploit the double free primitive mentioned earlier. To recap, once the initial use-after-free vulnerability is triggered and the free’d object is successfully replaced with controlled data using sendmsg, the replaced object will be used in the following loop as fence:

    spin_lock_irq(&timeline->lock);
    list_for_each_entry_safe(fence, tmp, &temp, node) {
        dma_fence_set_error(&fence->base, -ENOENT);
        dma_fence_signal_locked(&fence->base);
        dma_fence_put(&fence->base);
    }
    spin_unlock_irq(&timeline->lock);

In particular, dma_fence_put will reduce the refcount of the fake object and if the refcount reaches zero, it’ll call dma_fence_free, which will then free the object with kfree_rcu. Since the fake object is in complete control and I was able to resolve various issues that may lead to kernel crashes, I will now assume that this is the code path that is taken and that the fake object will be freed by kfree_rcu. By replacing the fake object again with another object, I can then obtain two references to the same object, which I will be able to free at any time using either of these object handles. The general idea is that, when a memory chunk is freed, the freelist pointer, which points to the next free chunk, will be written to the first 8 bytes of the memory chunk. If I free the object from one handle, and then modify the first 8 bytes of this free’d object using another handle, then I can hijack the freelist pointer and have it point to an address of my choice, which is where the next allocation will happen. (This is an overly simplified version of what happens as this is only true when the free and allocation are from the same slab, pages used by the memory allocator—SLUB allocator in this case—to allocate memory chunks, with allocation done via the fast path, but this scenario is not difficult to achieve.)

In order to be able to modify the first 8 bytes of the object after it was allocated, I’ll use the signalfd object used in “Mitigations are attack surface too”. The signalfd syscall allocates an 8 byte object to store a mask for the signalfd file, which can be specified by the user with some minor restrictions. The lifetime of the allocated object is tied to the signalfd file that is returned to the user and can be controlled easily by closing the file. Moreover, the first 8 bytes in this object can be changed by calling signalfd again with a different mask. This makes signalfd ideal for my purpose.

To hijack the freelist pointer, I have to do the following:

  1. Trigger the UAF bug and replaced the free’d dma_fence object with a fake dma_fence object allocated via sendmsg such that dma_fence_free will be called to free this fake object with kfree_rcu.
  2. Spray the heap with signalfd to allocate another object at the same address as the sendmsg object after it was freed.
  3. Free the sendmsg object so that the freelist pointer is written to the mask of the signalfd object in step two.
  4. Modify the mask of the signalfd object so that the freelist pointer now points to an address of my choice, then spray the heap again to allocate objects at that address.

If I set the address of the freelist pointer to the address of an ion buffer that I control, then subsequent allocations will place objects in the ion buffer, which I can then access and modify at any time. This gives me a very strong primitive in that I can read and modify any object that I allocate. Essentially, I can fake my own kernel heap in a region where I have both read and write access.

The main hurdle to this plan comes from the combination of kfree_rcu and the fact that the CPU running dma_fence_put will be temporarily trapped in a busy loop after kfree_rcu is called. Recall from the previous section that, until I am able to exit the loop by writing the address of the temp list to the next pointer of one of the fake kgsl_timeline_fence::node objects, the loop will be running. This, in particular, means that once kfree_rcu is called and dma_fence_put is exited, the loop will continue to process the other fake dma_fence objects on the CPU that is running kfree_rcu. As explained earlier, kfree_rcu does not immediately free an object, but rather schedules its removal. Most of the time, the free will actually happen on the same CPU that calls kfree_rcu. However, in this case, because the CPU running kfree_rcu is kept busy inside a spinlock by running the loop, the object will almost certainly not be free’d on that same CPU. Instead, a different CPU will be used to free the object. This causes a problem because the reliability of object replacement depends on the CPU that is used for freeing the object. When an object is freed on a CPU, the memory allocator will place it in a per CPU cache. An allocation that follows immediately on the same CPU will first look for free space in the CPU cache and is most likely going to replace that newly freed object. However, if the allocation happens on a different CPU, then it’ll most likely replace an object in the cache of a different CPU, rather than the newly freed object. Not knowing which CPU is responsible for freeing the object, together with the uncertainty of when the object is freed (because of the delay introduced by kfree_rcu) means that it may be difficult to replace the object. In practice, however, I was able to achieve reasonable results on the testing device (>70% success rate) with a rather simple scheme: Simply run a loop that spray objects on each CPU and repeat the spraying in intervals to account for the uncertainty in the timing. There is probably room for improvement here to make the exploit more reliable.

Another slight modification used in the exploit was to also replace the sendmsg objects after they are freed with another round of signalfd heap spray. This is to ensure that those sendmsg objects don’t accidentally get replaced by objects that I don’t control which may interfere with the exploit, as well as to make it easier to identify the actual corrupted object.

Now that I can hijack the freelist and redirect new object allocations to the ion buffer that I can freely access at any time, I need to turn this into an arbitrary memory read and write primitive.

The Device Memory Mirroring Attack

Kernel drivers often need to map memory to the user space, and as such, there are often structures that contain pointers to the page struct or the sg_table struct. These structures often hold pointers to pages that would be mapped to user space when, for example, mmap is called. This makes them very good corruption targets. For example, the ion_buffer object that I have already used is available on all Android devices. It has a sg_table struct that contains information about the pages that will get mapped to user space when mmap is used.

Apart from being widely available and accessible from untrusted apps, ion_buffer objects also solve a few other problems, so in what follows, I’ll use the freelist hijacking primitive above to allocate an ion_buffer struct in an ion buffer backing store that I have arbitrary read and write access to. By doing so, I can freely corrupt the data in all of the ion_buffer structs that are allocated. To avoid confusion, from now on, I’ll use the term “fake kernel heap” to indicate the ion buffer backing store that I use as the fake kernel heap and ion_buffer struct as the structures that I allocate in the fake heap for use as corruption targets.

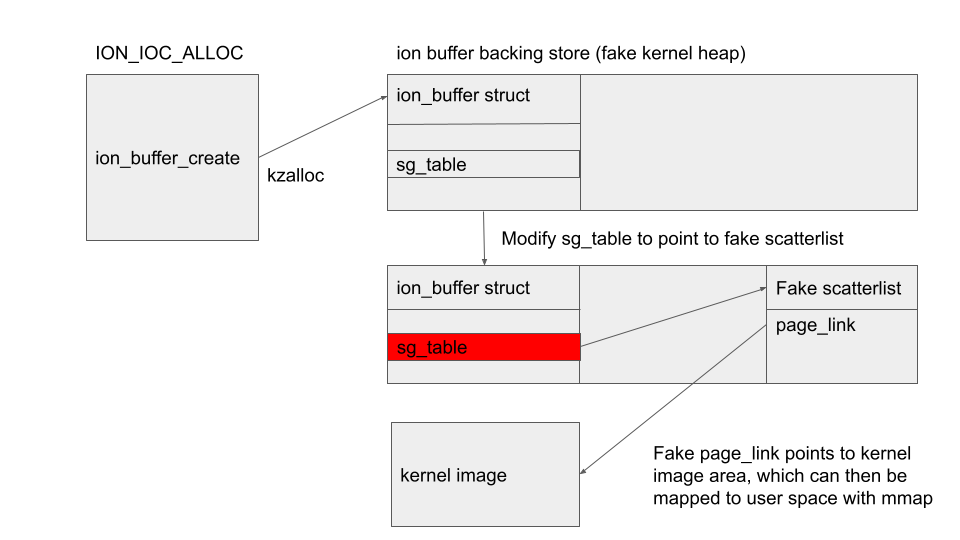

The general idea here is that, by allocating ion_buffer structs in the fake kernel heap, I’ll be able to modify the ion_buffer struct and replace its sg_table with controlled data. The sg_table structure contains a scatterlist structure that represents a collection of pages that back the ion_buffer structure:

struct sg_table {
    struct scatterlist *sgl;    /* the list */
    unsigned int nents;     /* number of mapped entries */
    unsigned int orig_nents;    /* original size of list */
};

struct scatterlist {
    unsigned long   page_link;
    unsigned int    offset;
    unsigned int    length;
    dma_addr_t  dma_address;
#ifdef CONFIG_NEED_SG_DMA_LENGTH
    unsigned int    dma_length;
#endif
};

The page_link field in the scatterlist is an encoded form of a page pointer, indicating the actual page where the backing store of the ion_buffer structure is:

static inline struct page *sg_page(struct scatterlist *sg)
{
#ifdef CONFIG_DEBUG_SG
    BUG_ON(sg_is_chain(sg));
#endif
    return (struct page *)((sg)->page_link & ~(SG_CHAIN | SG_END));
}

When mmap is called, the page encoded by page_link will be mapped to user space:

int ion_heap_map_user(struct ion_heap *heap, struct ion_buffer *buffer,
              struct vm_area_struct *vma)
{
    struct sg_table *table = buffer->sg_table;
    ...
    for_each_sg(table->sgl, sg, table->nents, i) {
        struct page *page = sg_page(sg);
        ...
        //Maps pages to user space
        ret = remap_pfn_range(vma, addr, page_to_pfn(page), len,
                      vma->vm_page_prot);
        ...
    }

    return 0;
}

As the page pointer is simply a logical shift of the physical address of the page followed by a constant linear offset (see the definition of phys_to_page), being able to control page_link allows me to map an arbitrary page to user space. For many devices, this would be sufficient to achieve arbitrary kernel memory read and write because the kernel image is mapped at a fixed physical address (KASLR randomizes the virtual address offset from this fixed physical address), so there is no need to worry about KASLR when working with physical addresses.

Samsung devices, however, do KASLR differently. Instead of mapping the kernel image to a fixed physical address, the physical address of the kernel image is randomized (strictly speaking, the intermediate physical address as perceived by the kernel, which is not the real physical address but rather a virtual address given by the hypervisor) instead. So in our case, I still need to leak an address to defeat KASLR. With the fake kernel heap, however, this is fairly easy to achieve. An ion_buffer object contains a pointer to an ion_heap, which is responsible for allocating the backing stores for the ion_buffer:

struct ion_buffer {
    struct list_head list;
    struct ion_heap *heap;
    ...
};

While the ion_heap is not an global object in the kernel image, each ion_heap contains an ion_heap_ops field, which points to the corresponding “vtable” of the specific ion_heap object:

struct ion_heap {
    struct plist_node node;
    enum ion_heap_type type;
    struct ion_heap_ops *ops;
    ...
}

The ops field in the above is a global object in the kernel image. If I can read ion_buffer->heap->ops, then I’m also able to get an address to defeat KASLR and translate addresses in the kernel image to physical addresses. This can be done as follows:

1) First locate the ion_buffer struct in the fake kernel heap. This can be done using the flags field in the ion_buffer:

struct ion_buffer {
    struct list_head list;
    struct ion_heap *heap;
    unsigned long flags;
    ...

which is a 4 byte value passed from the parameters of the ION_IOC_ALLOC ioctl when the ion_buffer is created. I can set these to specific “magic” values and search for them in the fake kernel heap.

2) Once the ion_buffer struct is located, read its heap pointer. This will be a virtual address in the low memory area outside of the kernel image, and as such, its physical address can be obtained by applying a constant offset.

3) Once the physical address of the corresponding ion_heap object is obtained, modify the sg_table of the ion_buffer so that its backing store points to the page containing the ion_heap. 4. Call mmap on the ion_buffer file descriptor, this will map the page containing the ion_heap to user space. This page can then be read directly from user space to obtain the ops pointer, which will give the KASLR offset.

The use of the ion_buffer struct also solves another problem. While the fake kernel heap is convenient, it is not perfect. Whenever an object in the fake kernel heap is freed, kfree will check whether the page containing the object is a single page slab from the SLUB allocator by using the PageSlab check. If the check fails, then the PageCompound check will be performed to check whether the page is part of a bigger slab.

void kfree(const void *x)
{
    struct page *page;
    void *object = (void *)x;

    trace_kfree(_RET_IP_, x);

    if (unlikely(ZERO_OR_NULL_PTR(x)))
        return;

    page = virt_to_head_page(x);
    if (unlikely(!PageSlab(page))) {     //<-------- check if the page allocated is a single page slab
        unsigned int order = compound_order(page);

        BUG_ON(!PageCompound(page));     //<-------- check if the page is allocated as part of a multipage slab
        ...
    }
    ...
}

As these checks are performed on the page struct itself, which contains metadata to the page, they will fail and cause the kernel to crash whenever an object is freed. This can be fixed by using the arbitrary read and write primitives that I now have to overwrite the respective metadata in the page struct (the address of a page struct that corresponds to a physical address is simply a logical shift of the physical address followed by a translation of a fixed offset, so I can map the page containing the page struct to user space and modify its content). It would, however, be simpler if I can ensure that the objects that occupy the fake kernel heap never get freed. Before an ion_buffer struct is freed, ion_buffer_destroy is called:

int ion_buffer_destroy(struct ion_device *dev, struct ion_buffer *buffer)
{
    ...
    heap = buffer->heap;
    ...
    if (heap->flags & ION_HEAP_FLAG_DEFER_FREE)
        ion_heap_freelist_add(heap, buffer);    //<--------- does not free immediately
    else
        ion_buffer_release(buffer);

    return 0;
}

If the ion_heap contains the flag ION_HEAP_FLAG_DEFER_FREE, then the ion_buffer will not be freed immediately, but instead gets added to the free_list of the ion_heap using ion_heap_freelist_add. The ion_buffer objects added to this list will only be freed at a later stage when needed and only if the ION_HEAP_FLAG_DEFER_FREE flag is set. Normally, of course, the ION_HEAP_FLAG_DEFER_FREE does not change over the lifetime of the ion_heap, but with our arbitrary memory write primitive, I can simply add ION_HEAP_FLAG_DEFER_FREE to the ion_heap->flags, free the ion_buffer, and then remove ION_HEAP_FLAG_DEFER_FREE again and the ion_buffer will just get stuck in the freelist of the ion_heap and never get freed. Moreover, the page containing the ion_heap object is already mapped for the purpose of defeating KASLR, so toggling the flag is fairly trivial. By spraying the fake kernel heap so that it is filled with ion_buffer objects and their dependents, I can ensure that those objects are never freed and avoid the kernel crash.

Bypassing SELinux

When SELinux is enabled, it can be run in either the permissive mode or the enforcing mode. When in permissive mode, it will only audit and log unauthorized accesses but will not block them. The mode in which SELinux is run is controlled by the selinux_enforcing variable. If this variable is zero, then SELinux is run in permissive mode. Normally, variables that are critical to the security of the system are protected by Samsung’s Kernel Data Protection (KDP), by marking them as read-only using the __kdp_ro or the __rkp_ro attribute. This attribute indicates that the variable is in a read-only page and its modification is guarded by hypervisor calls. However, to my surprise, it seems that Samsung has forgotten to protect this variable (again?!) in the 5.x branch Qualcomm kernel:

//In security/selinux/hooks.c
#ifdef CONFIG_SECURITY_SELINUX_DEVELOP
static int selinux_enforcing_boot;
int selinux_enforcing;

So, I can just overwrite selinux_enforcing to zero and set SELinux to the permissive mode. While there are other means to bypass SELinux (such as the one used in this exploit by Valentina Palmiotti) that work more universally, a shortcut at this point is more than welcome, so I’ll just set the selinux_enforcing variable.

Running arbitrary root commands using ret2kworker(TM)

A well-known problem with getting root on Samsung devices is the protection imposed by the Samsung’s RKP (Realtime Kernel Protection). A common way to gain root on Android devices is to overwrite the credentials of our own process with the root credentials. However, Samsung’s RKP write protects the credentials of each process, so that is not possible here. In my last exploit, I was able to execute arbitrary code as root because the particular UAF exploited led to a controlled function pointer being executed in code run by a kworker, which is run as root. In that exploit, I was able to corrupt objects that are then added to a work queue, which was then consumed by a kworker and executed by running a function supplied as a function pointer. This made it relatively easy to run arbitrary functions as root.

Of course, with arbitrary memory read and write primitives, it is possible to simply add objects to one of these work queues (which are basically linked lists containing work structs) and wait for a kworker to pick up the work. As it turns out, many of these work queues are indeed static global objects, with fixed addresses in the kernel image:

ffffffc012c8f7e0 D system_wq
ffffffc012c8f7e8 D system_highpri_wq
ffffffc012c8f7f0 D system_long_wq
ffffffc012c8f7f8 D system_unbound_wq
ffffffc012c8f800 D system_freezable_wq
ffffffc012c8f808 D system_power_efficient_wq
ffffffc012c8f810 D system_freezable_power_efficient_wq

So, it is relatively straightforward to add entries to these work queues and have a kworker pick up the work. However, because of kCFI, I would only be able to call functions with the following signatures:

void (func*)(struct work_struct *work)

The problem is whether I can find a powerful enough function to run. It turns out to be fairly simple. The function call_usermodehelper_exec_work, which is commonly used in kernel exploits to run shell commands, fits the bill and will run a shell command supplied by me. So by modifying, say, the system_unbound_wq and adding an entry to it that holds a pointer to call_usermodehelper_exec_work, I can bypass both Samsung’s RKP and kCFI to run arbitrary commands as root.

The exploit can be found here with some setup notes.

Conclusions

In this post, I exploited a UAF with fairly typical primitives and examined how various mitigations affected the exploit. While in the end, I was able to bypass all the mitigations and develop an exploit that is no less reliable than another one that I did last year, the mitigations did force the exploit to take a very different, and longer path.

The biggest hurdle was the kCFI, which turned a relatively straightforward exploit into a rather complex one. As explained in the post, the UAF bug offers many primitives to execute an arbitrary function pointer. Combined with a separate information leak (which I happen to have, and is pending disclosure) the bug would have been trivial to exploit as in the case of the NPU bugs I wrote about last year. Instead, the combination of Samsung’s RKP and kCFI made this impossible and forced me to look into an alternative path, which is far less straightforward.

On the other hand, many of the techniques introduced here, such as the ones in “The ultimate fake object store” and “The device memory mirroring attack” can be readily standardized to turn common primitives into arbitrary memory read and write. As we’ve seen, having arbitrary memory read and write, even with the restrictions imposed by Samsung’s RKP, is already powerful enough for many purposes. In this regard, it seems to me that the effect of kCFI may be to shift exploitation techniques in favor of certain primitives over others rather than rendering many bugs unexploitable. It is, after all, as many have said, a mitigation that happens fairly late in the process.

A rather underrated mitigation, perhaps, is automatic variable initialization. While this mitigation mainly targets vulnerabilities that exploit uninitialized variables, we’ve seen that it also prevents partial object replacement, which is a common exploitation technique. In fact, it nearly broke the exploit if it hadn’t been for a piece of luck where I was able to leak the address of a stack variable (see “Escaping an infinite loop”). Not only does this mitigation kill a whole class of bugs, but it also breaks some useful exploit primitives.

We’ve also seen how primitives in manipulating the kernel scheduler enabled us to widen many race windows to allow time for object replacements. This allowed me to overcome the problem posed by the delayed free caused by kfree_rcu (not a mitigation), without significantly compromising the reliability. It seems that, in the context of the kernel, mitigating a UAF with a quarantine and delayed free of objects (an approach adopted by the Scudo allocator for Android user processes) may not be that effective after all.

Disclosure practices, patching time, and patch gapping

I reported this vulnerability to Qualcomm on November 16 2021 and they publicly disclosed it in early May 2022. It took about six months, which seems to be the standard time Qualcomm takes between receiving a report and publicly disclosing it. In the past, the long disclosure times have led to some researchers disclosing full exploits before vulnerabilities were patched in public (see, for example, this). Qualcomm employs a rather “special” disclosure process, in which it normally discloses the patch of a vulnerability privately to its customers within 90 days (this is indicated by the “Customer Notified Date” in Qualcomm’s advisories), but the patch may only be fully integrated and publicly disclosed several months after that.

While this practice gives customers (OEM) time to patch the vulnerabilities before they become public, it creates an opportunity for what is known as “patch gapping.” As patches are first disclosed privately to customers, it means that some customers may decide to apply the patch before it is publicly disclosed, while others may wait until the patch is fully integrated and disclosed publicly and then apply the monthly patch. For example, this patch was applied to the Samsung S21 in July 2021 (by inspecting the Samsung open source code), but only publicly disclosed as CVE-2021-30305 in October 2021. By comparing firmware between different vendors, it may be possible to discover vulnerabilities that are privately patched by one vendor, but not the other. As the private disclosure time and public disclosure time are often a few months apart, this leaves ample time to develop an exploit. Moreover, the patch for the vulnerability described in this post was publicly visible sometime in December 2021 with a very clear commit message, leaving a five‐month (or two‐month for private disclosure) gap in between. While the exploit is complex, a skilled hacking team could easily have developed and deployed it within that time window. I hope that Qualcomm will improve their patching time or reduce the gap between their private and public disclosure time.

Written by

Related posts
